Striebig Compact

Striebig Compact

Location:Tampa, FL

Description

Flexible and Economical

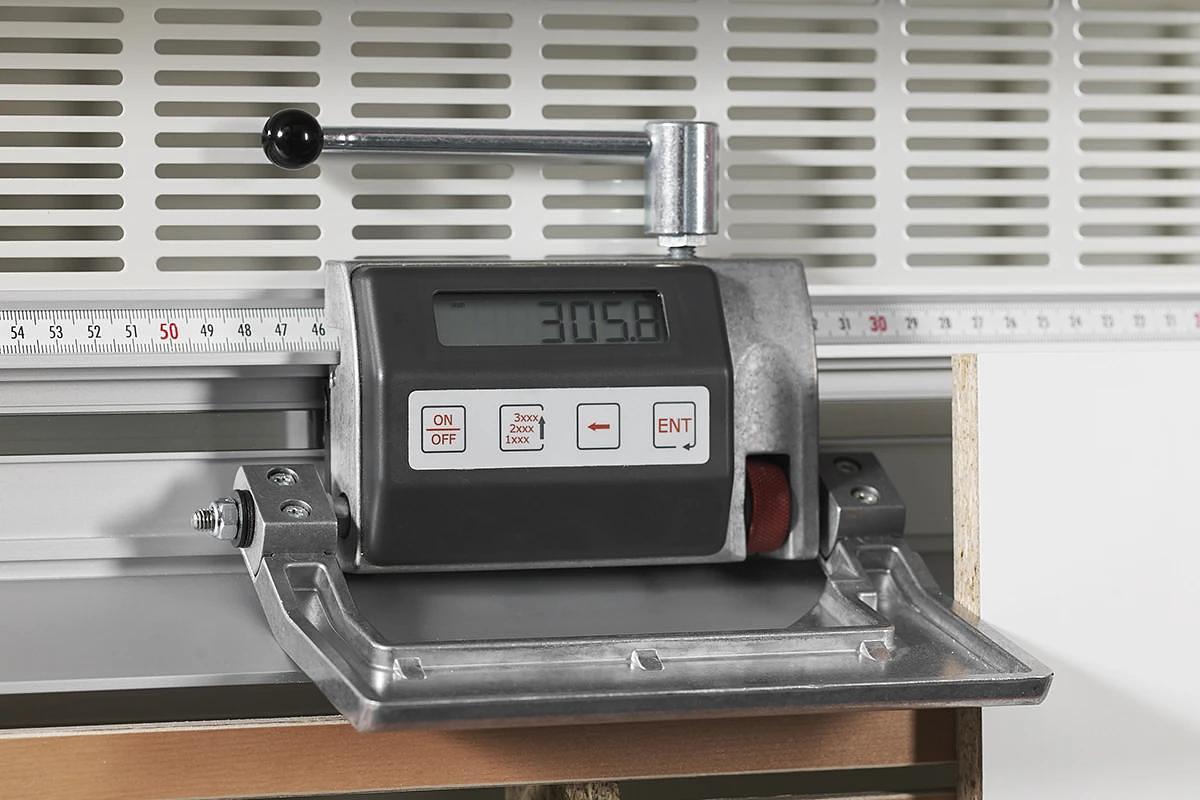

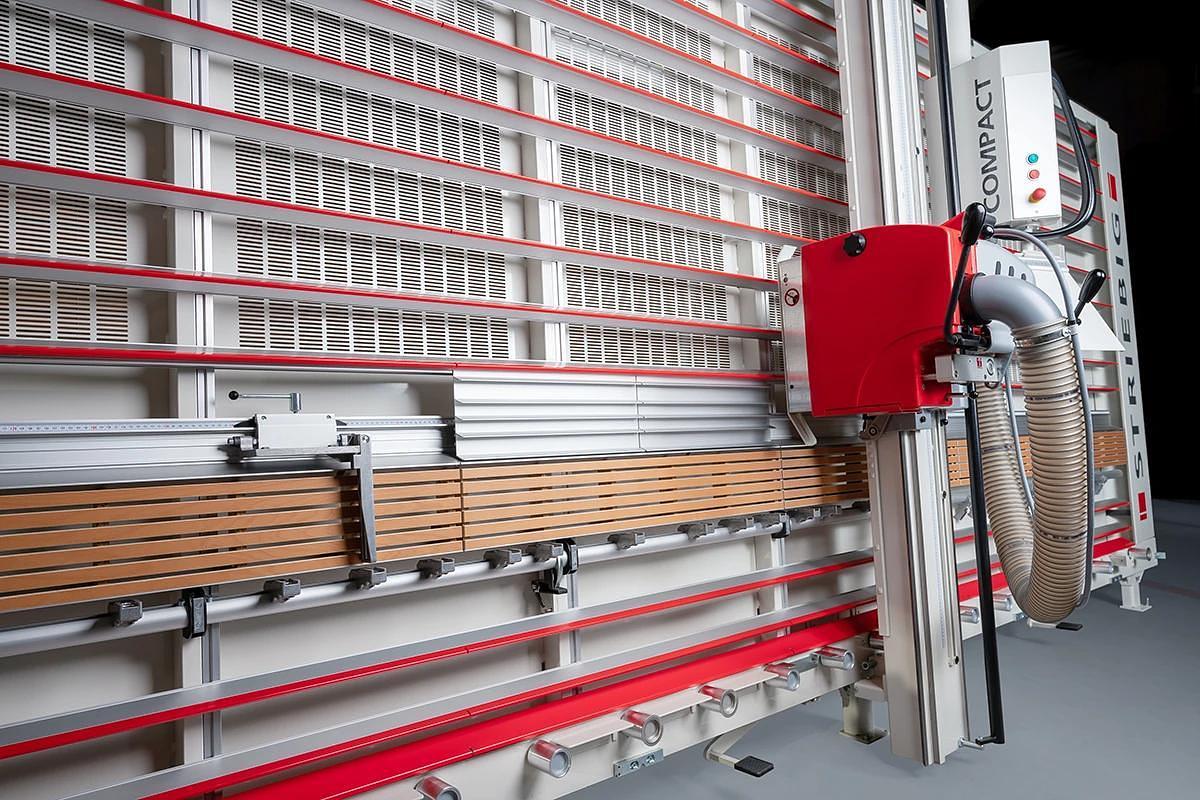

The STRIEBIG Compact is the entry point to precise, efficient panel cutting. Designed for smaller shops, limited spaces, or as a companion to a CNC router, it handles panels up to 5′ × 10′ and can stack-cut up to three sheets of ¾” material. Optional features like digital measuring and a true scoring saw expand its capabilities, while offering clean, precise cuts on wood, plastics, composites, and non-ferrous metals, all from a compact, efficient design.

  • One-piece fully welded frame that stays square over time

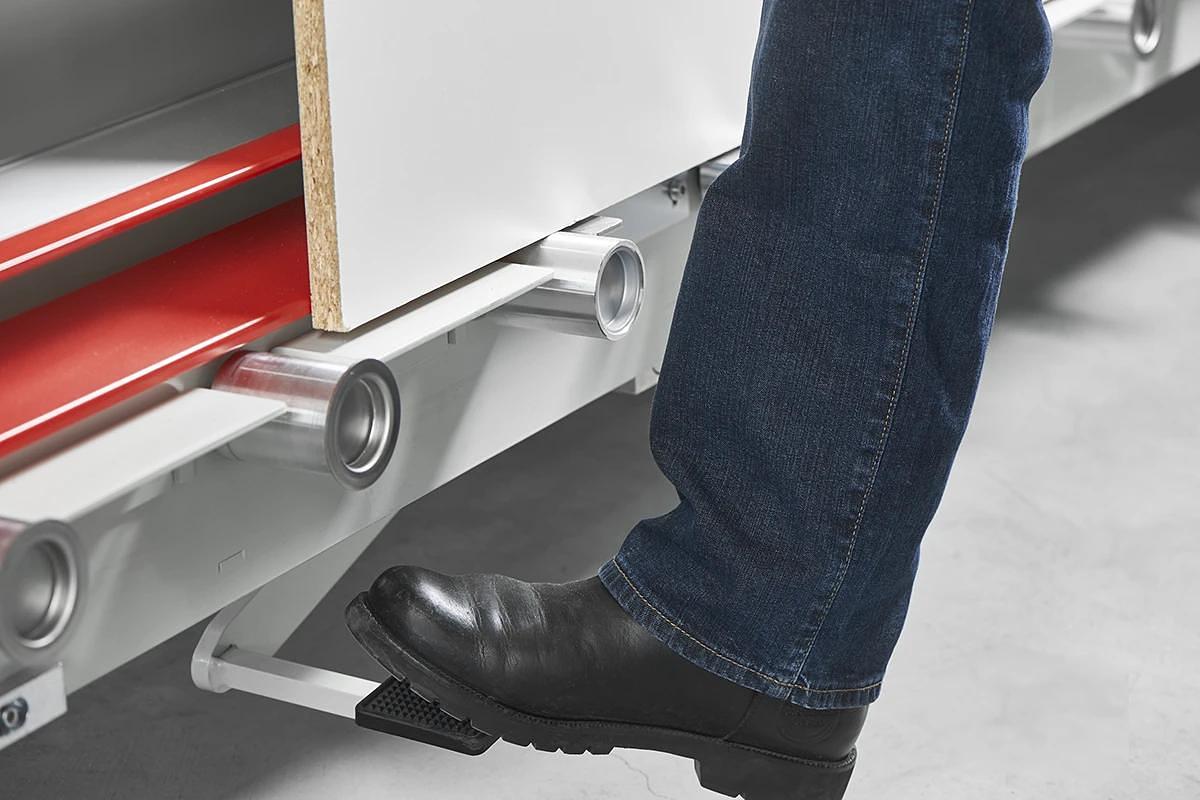

  • Heavy-duty support rollers for easy handling and minimal dust accumulation

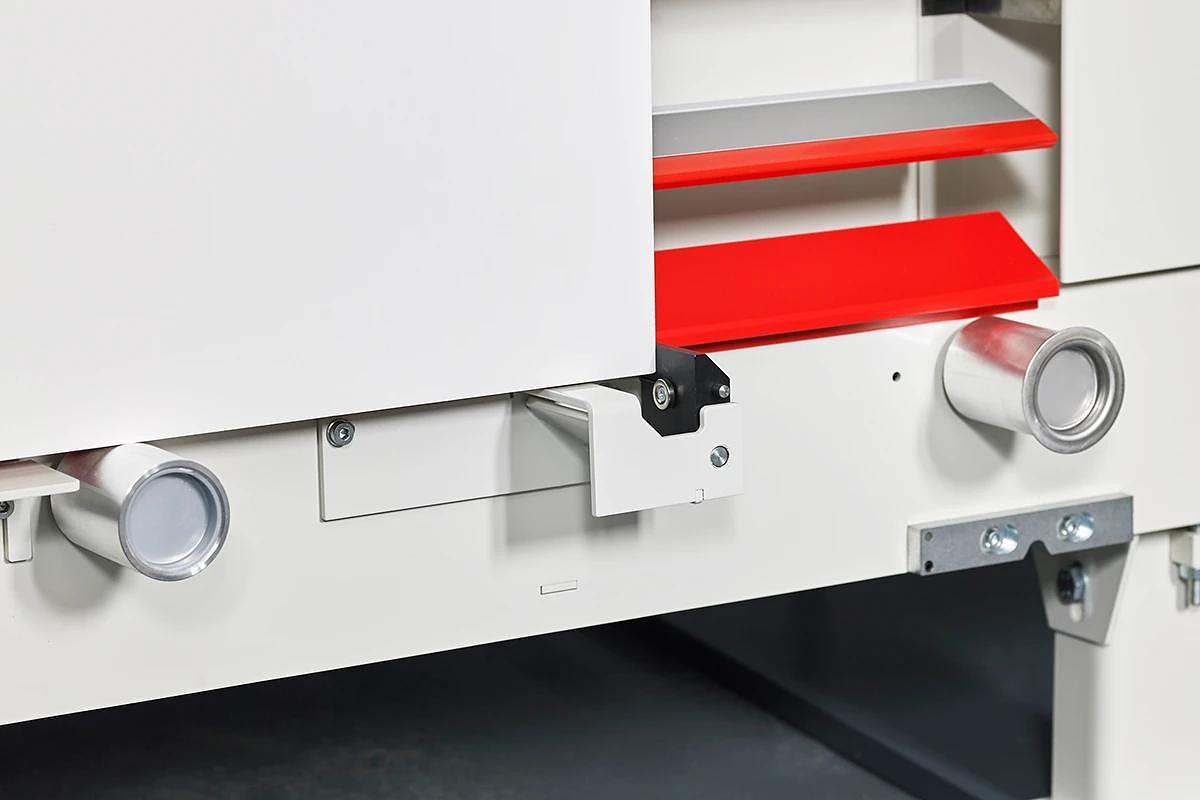

  • Full-length mid-shelf and wood small parts support for easy, safe handling of small parts
  • Auto-shifting support grid so plastic laths don’t get cut

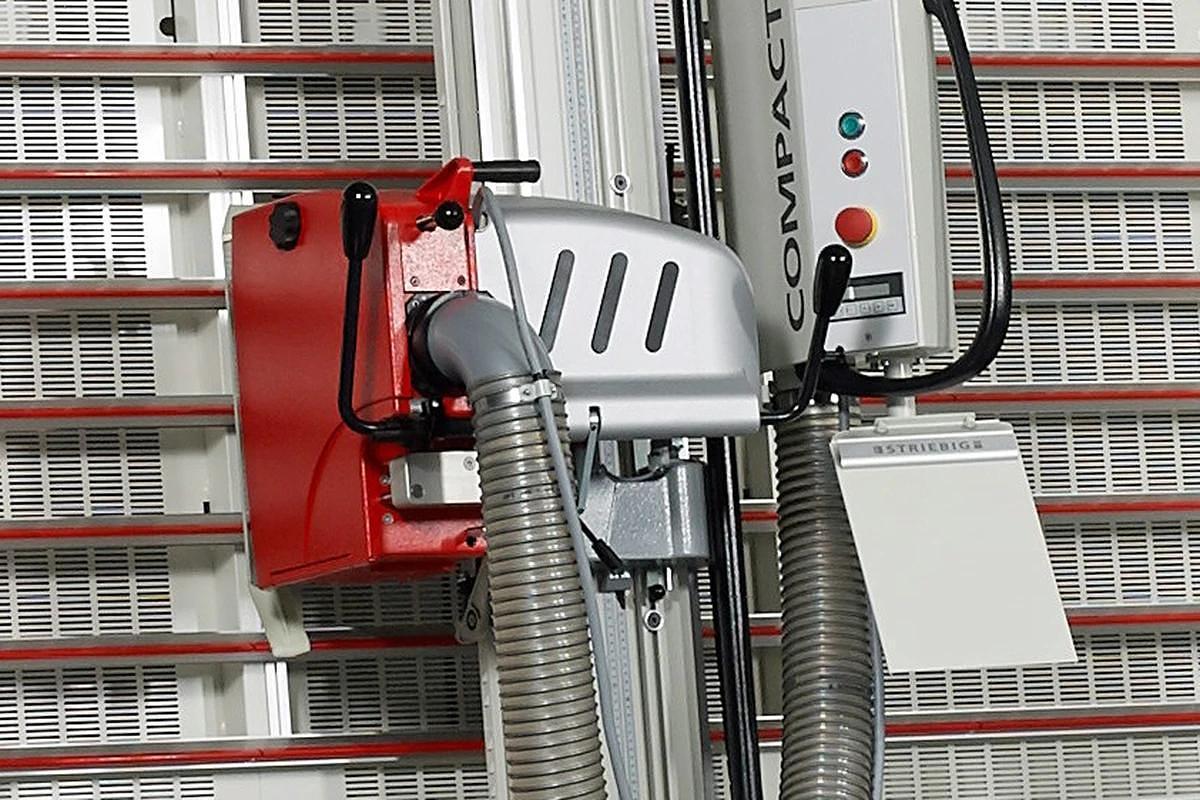

  • Highly efficient dust system for a cleaner work environment
  • 2-3/8” depth of cut to allow stack cutting of material
  • Nearly all options are retrofittable – see options here

Specifications

ManufacturerStriebig
ConditionNew
Cut Capacity10′ 2″ L × 5′ 5″ H; depth 2-3/8″ (60 mm)
Motor5-1/4 hp, 208–480V, 3-phase motor with electric brake
Main Saw Blade250 mm dia., 30 mm bore with (2) 7 mm pin holes (42 mm circle)

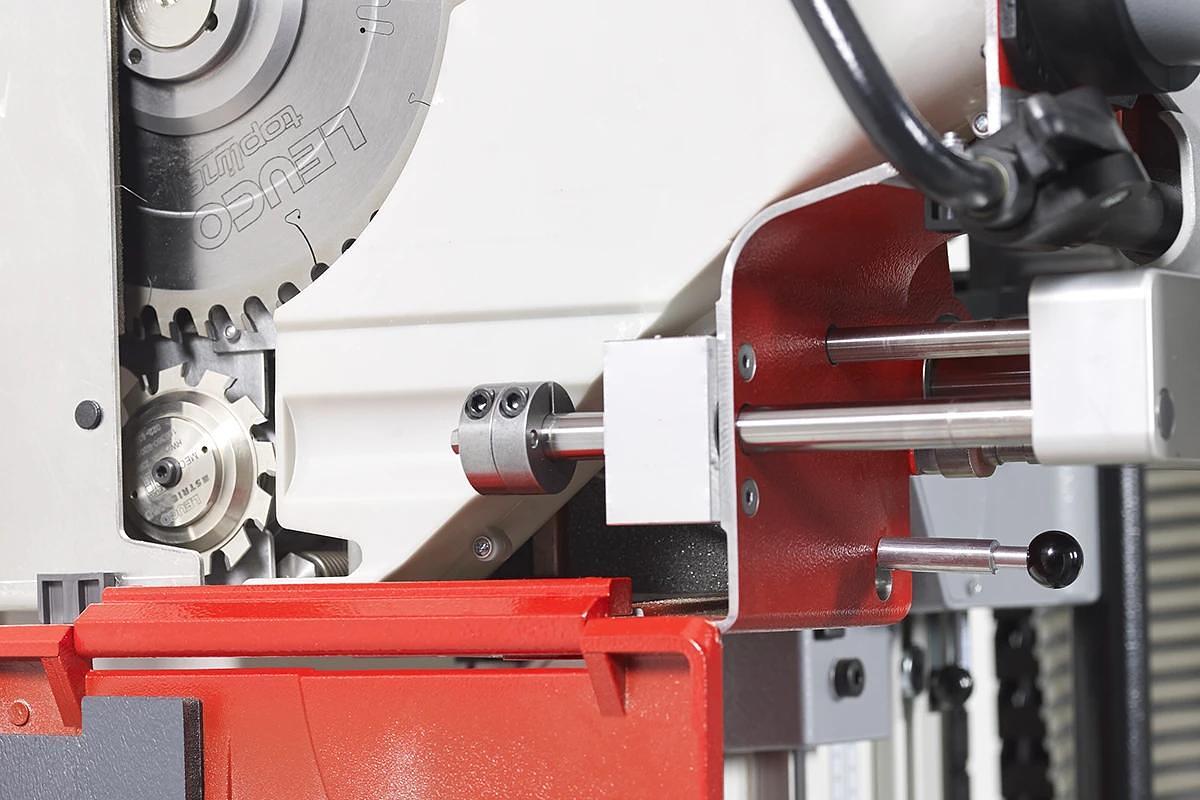

Scoring Saw BladeOptional; 80 mm dia., 20 mm bore; shim spacers or infinitely adjustable
Electrical3-phase: 208V or 240V (20A circuit), or 480V (10A min circuit)
Dust CollectionTwo 4″ ports; 500 CFM per port
Machine Dimensions13′ L × 4′ 7″ D × 7′ 10″ H (8′ 6″ H with repeat rip device)
Approx. Weight1,340 lbs
