Striebig Standard S
Striebig Standard S
Location:Tampa, FL
Description
Tried and tested over decades

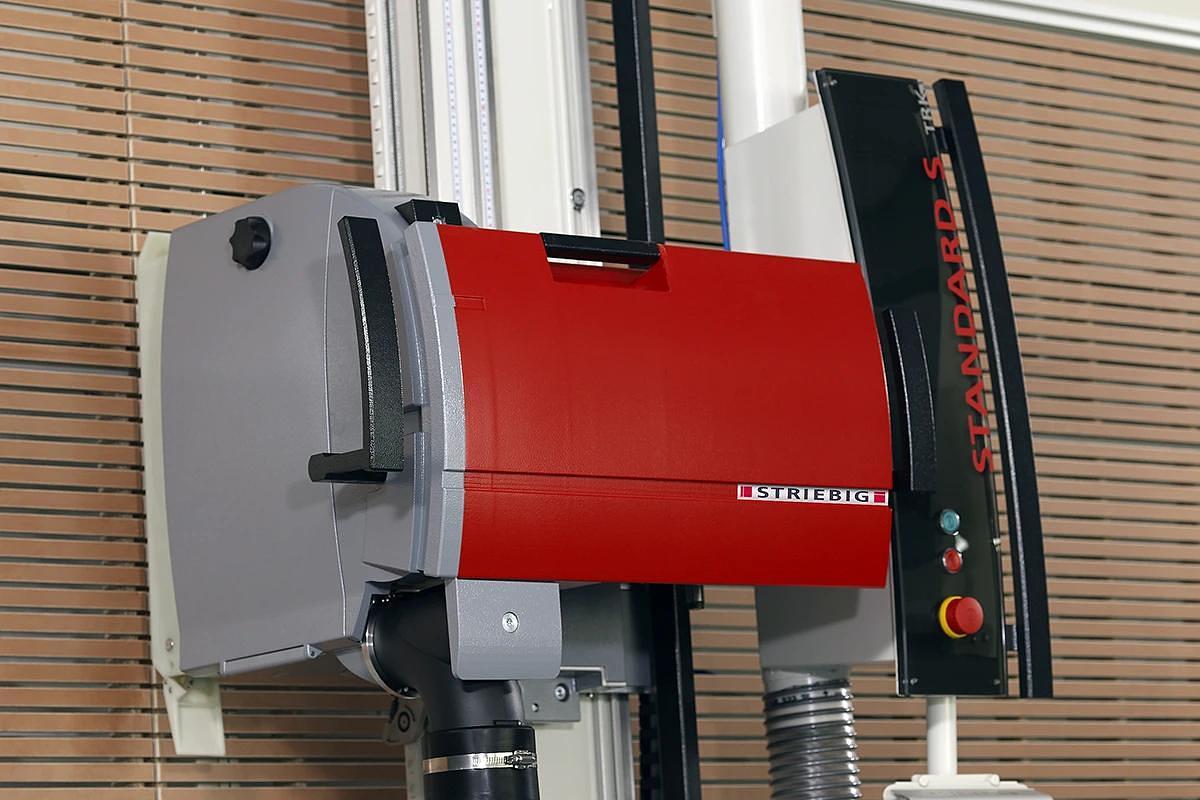

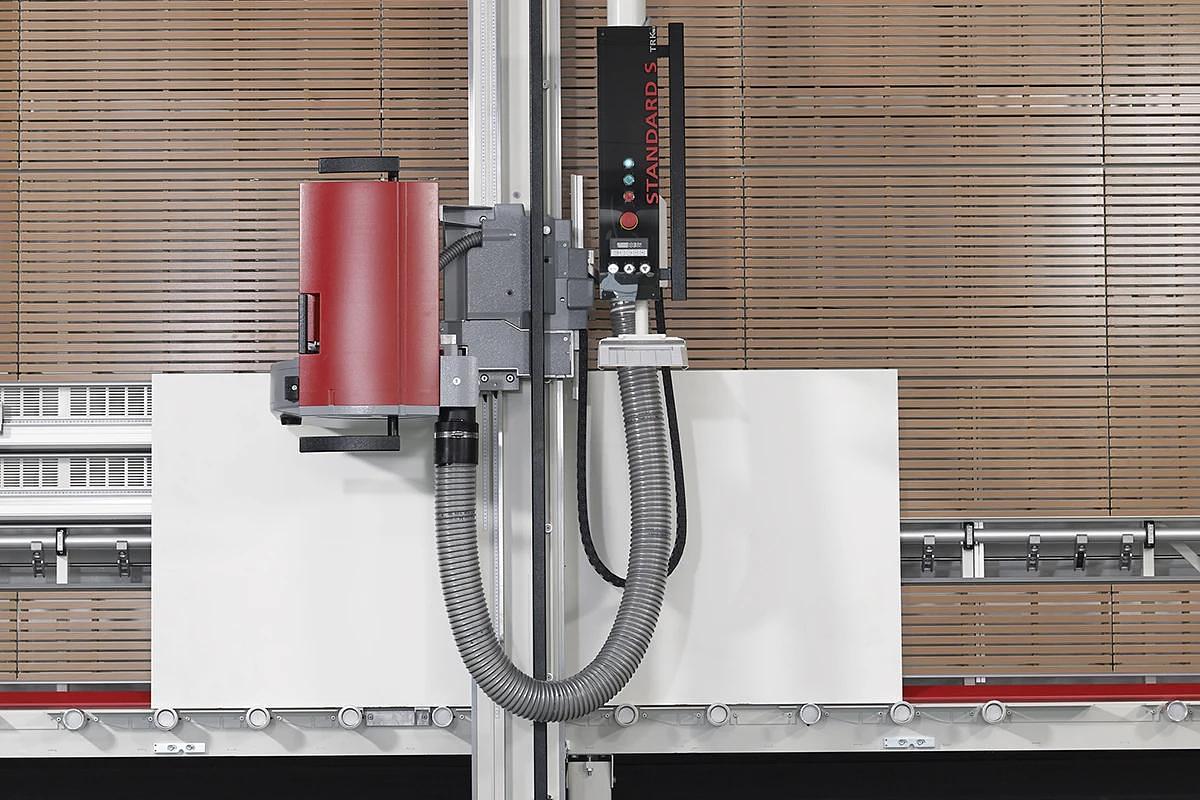

The Standard S is the latest model in the manual panel saw range from Striebig. It was developed to accommodate the popular scoring saw unit for perfect, chip-free cuts, which the traditional Standard model cannot accommodate. But Striebig also took that opportunity to incorporate a host of other features and design from their more automated models to produce this ultimate high-end manual panel saw. Such features include automatic locking rollers, pneumatic clamping of the carriage and digital measuring with motorized fine adjustments for the horizontal cuts. There is even a laser cut line guide for the horizontal cuts as well. Like the traditional Standard, it also has three choices of back support from all-aluminum to full wood, and a choice in between with wood support just for the smaller pieces. Simple to use, powerful, and full of convenience features, it’s as good as you get in a fully manual saw.
- Swiss made quality for accuracy and durability!
- Very stable, all welded steel frame suitable for free-standing or wall-mount installation

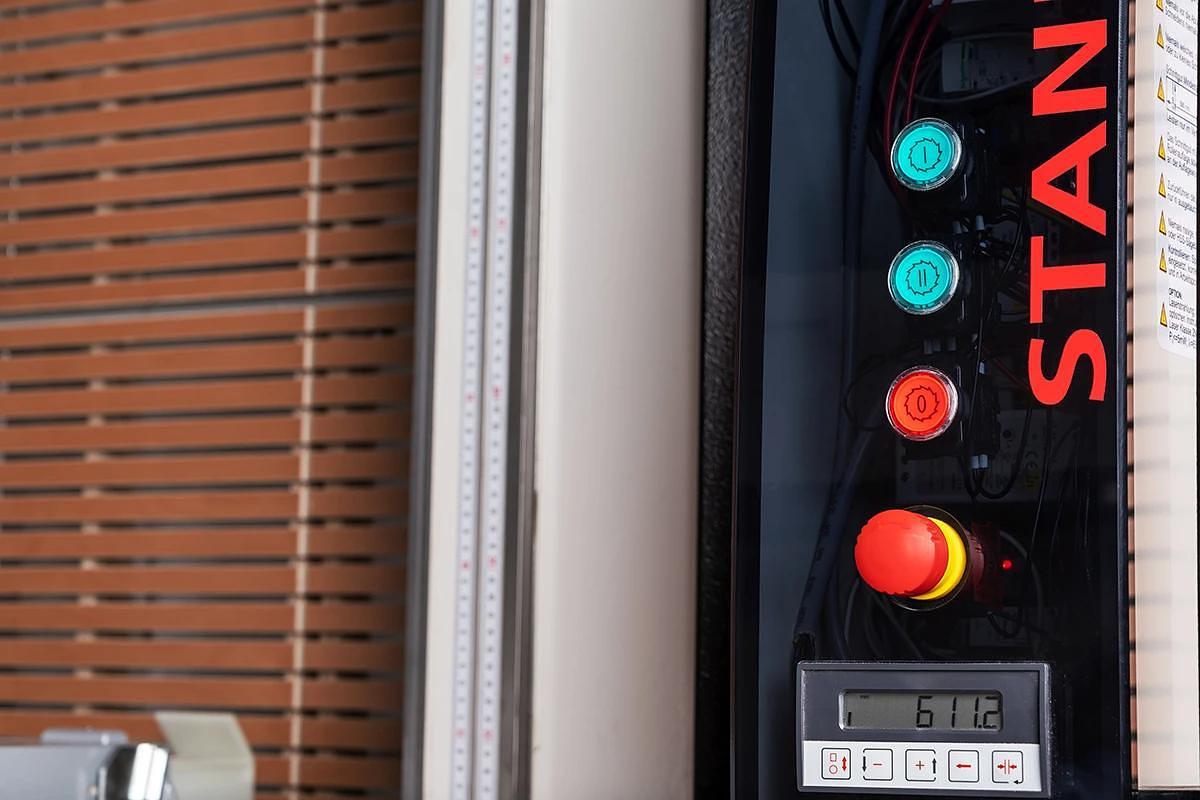

- Y-axis digital measuring with motorized fine adjustment for precise horizontal cuts
- Push-button pneumatic clamping of the carriage at a cutting height
- Automatic locking of the heavy-duty support rollers whenever a cut is started

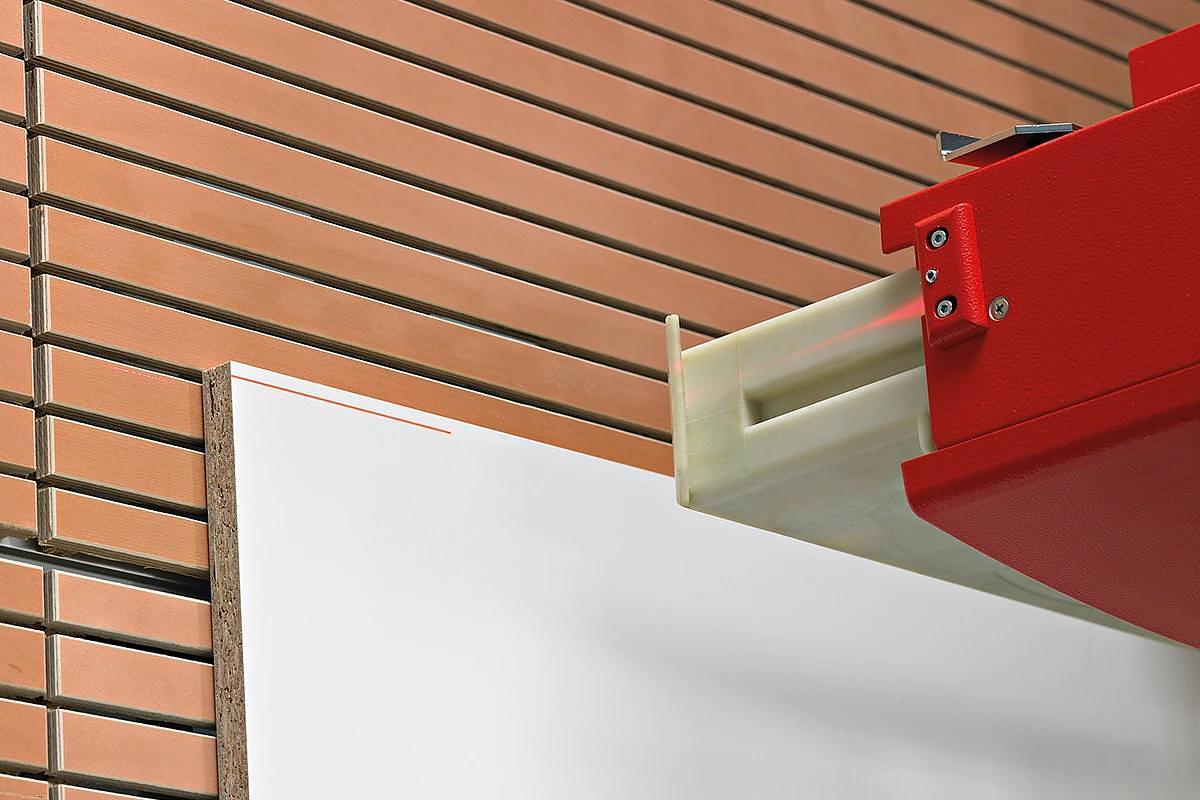

- Laser cut line guide for quick set-up of horizontal cuts
- Convenient, sturdy, two-section mid-shelf with adjustable aluminum finger allows for comfortable working of small parts and ability to stage material on one side of the saw

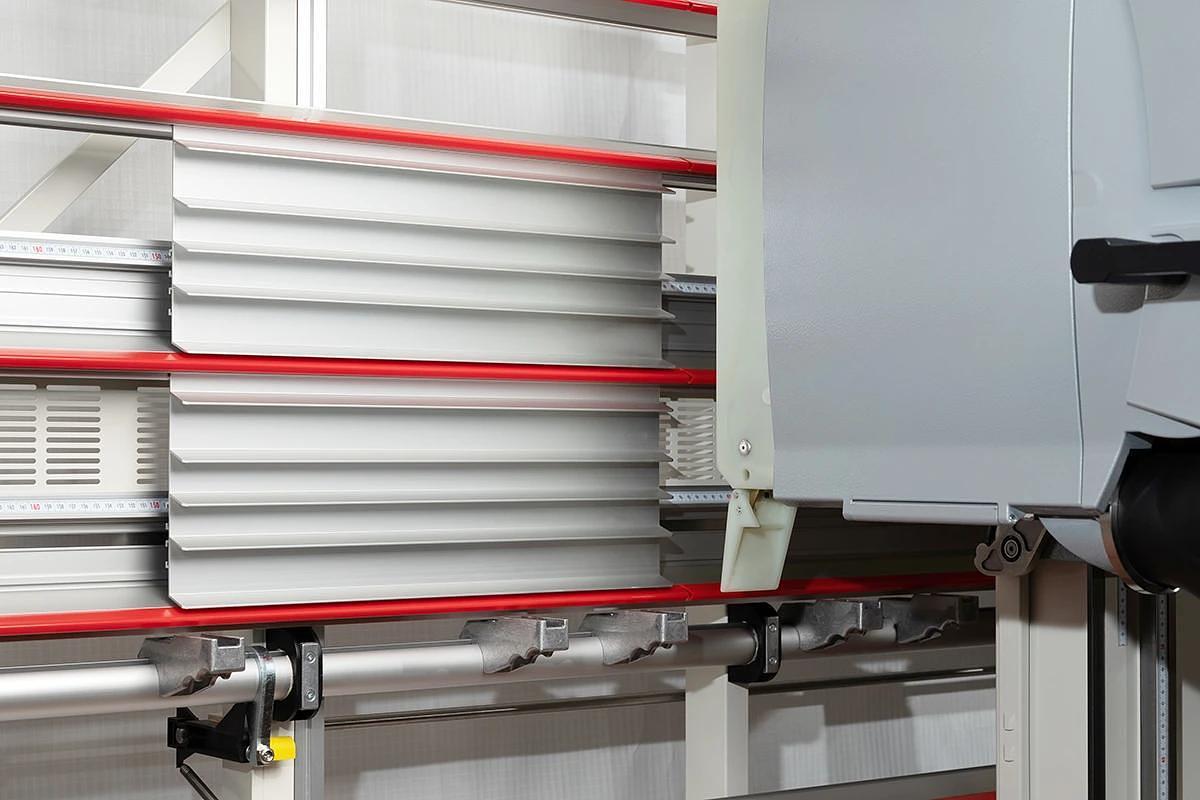

- Support for small parts via snap-in aluminum supports or wood panels
- Automatic, mechanically shifting support grid with replaceable lath tips

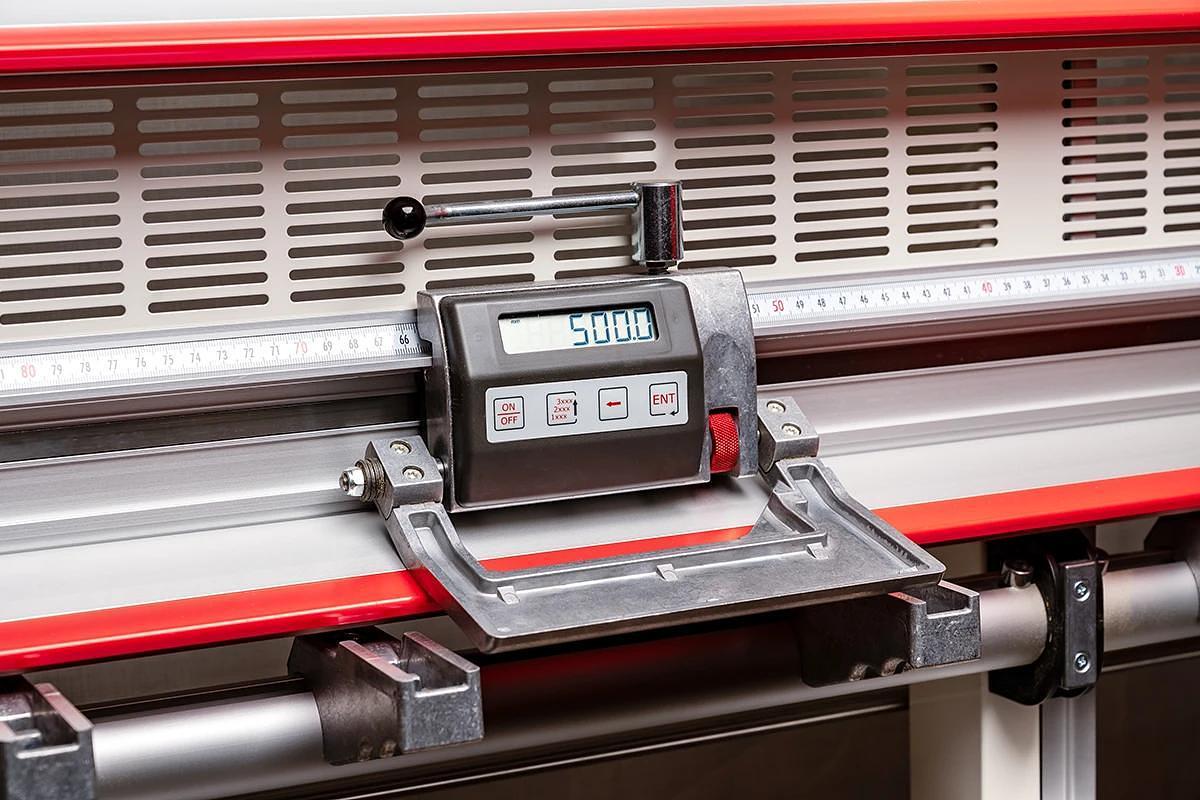

- Main measuring channel with inches/metric scales and measuring stop
- Second measuring channel for repeat dimensions with one auxiliary stop
- Vertical cutting stations 40 inches on center (1 meter optional)
- High efficiency dust system has added rear collection area with full-length bottom dust collection pipe
- 7-1/2 hp, 220/440V, 3-phase motor with electric brake
- 300mm saw blade for 3-1/8” cut depth
- Template bar with six stops for setting typical horizontal cuts
- Repeat rip device with roller follower
- Saw head plunging device for cross-cutting tall panels
Specifications
| Manufacturer | Striebig |
| Condition | New |
| Cut Capacity | 14’ 1” L × 5’ 6” H (5’ 1” trim height); 3-1/8” (80 mm) depth; other standard frame sizes available up to 17’ 4” L × 7’ 4” H; special frame lengths up to 30’ 6” cut length |
| Main Saw Blade | 300 mm dia., 30 mm bore with (2) 9 mm pin holes (60 mm circle) |
| Scoring Saw Blade | 80 mm dia., 20 mm bore, split-blade type — shim spacers or adjustable |
| Electrical | 3-phase: 220V (30A circuit) or 440V (15A circuit) |
| Dust Collection | Single 5.5” (140 mm) port (choice of side), approx. 5’ height from floor; 1,000 CFM |
| Machine Dimensions | 18’ 2” L × 5’ D × 8’ 3” H |
| Approx. Weight | 1,950 lbs (2,900 lbs gross shipping) |
