Effortless Operation

The STRIEBIG 4D opens up a new performance spectrum for vertical panel cutting technology.

With pneumatic assistance, the unit plunges fully automatically into the panel. Feed speeds can be infinitely adjusted between 10 and 25 m/min, thus individually adapted to the material being cut.

Precision machine parts are manufactured to an accuracy of 1/100 mm. It has a massive, self-supporting, firmly welded, twist-free saw frame, plus a full-surface support wall of birch plywood with integral small workpiece support.

The integral TRK dust extraction system achieves dust limit values considerably below 1 mg/m³, more than 50% below the applicable recommended values.

Further features which are also a matter of course for the premium class include the following: freely selectable saw cycle, panel end recognition, constant return speed of the saw unit, operating time counter and the digital measuring system DMS installed on both axes as standard.

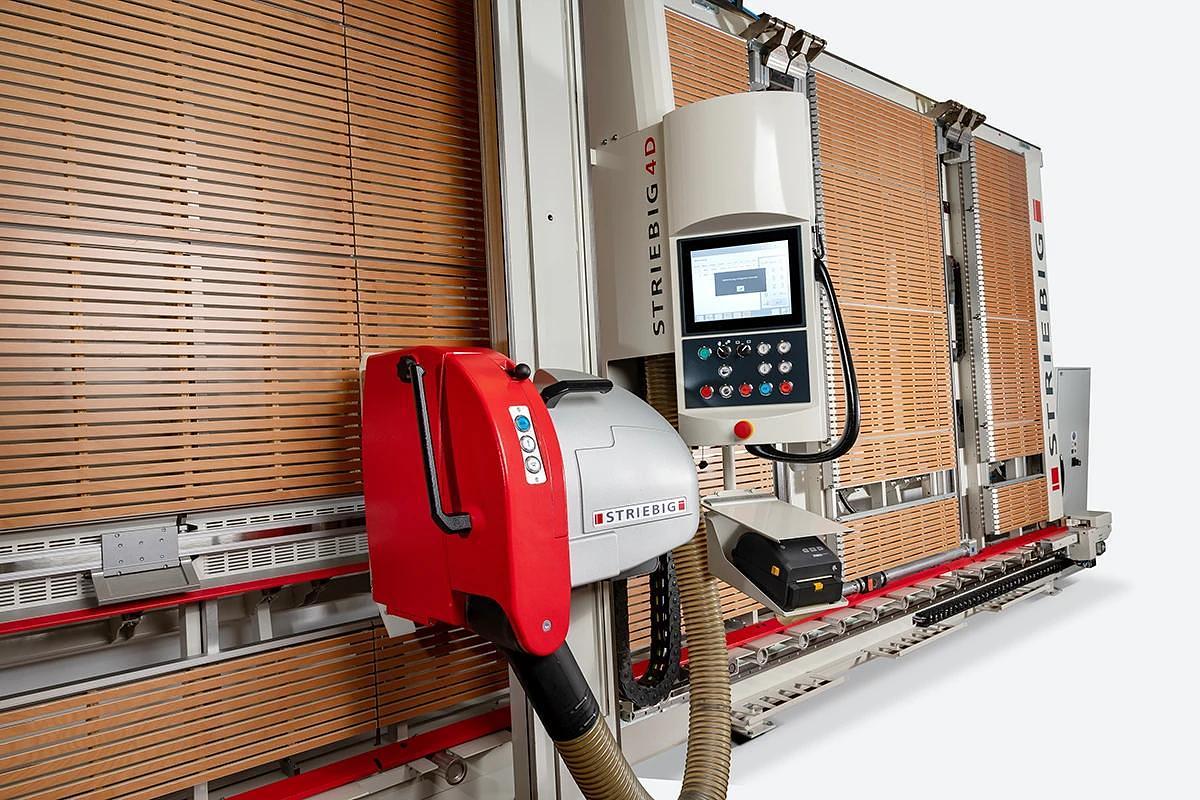

12” Color Touch-screen for control of most saw functions, information, and diagnostics
Selectable sawing cycle (cut and return, or cut and stop)
Panel end sensor and start position memory to save time (instead of having to travel to end of saw)
EPS.Y programmable saw head positioning for horizontal cuts- great for repeat rip cuts!; includes ABO – automatic, laser light top of panel recognition and positioning for a top trim cut
Digital measuring X-axis stop (for vertical cuts) with fine adjustment, quick and easy referencing, push-button selection to reference from another cut station, and selectable display increments
Extremely stable, all welded steel frame suitable for free-standing or wall-mount installation
Convenient, sturdy, two-section center shelf with weight detection allows for comfortable working of smaller parts and ability to stage material on one side of the saw

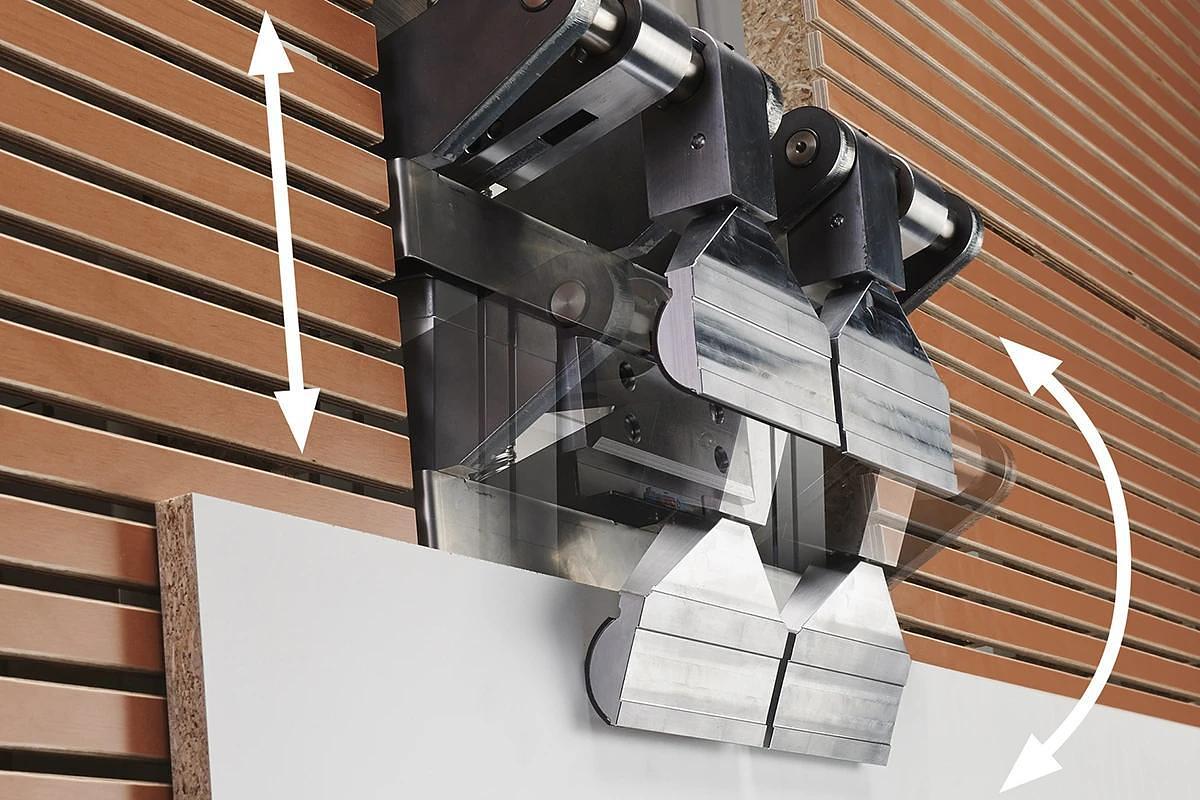

Automatic recognition and locking of beam at vertical cut stations; unlock at the press of an icon
Touch-screen control for rotating, plunging, and locking/unlocking of the saw head and beam
Duplicate buttons conveniently located on front of the saw head for “start cycle”, plunge, and next sequence
Automatic locking of the heavy-duty panel support rollers when cut cycle is started

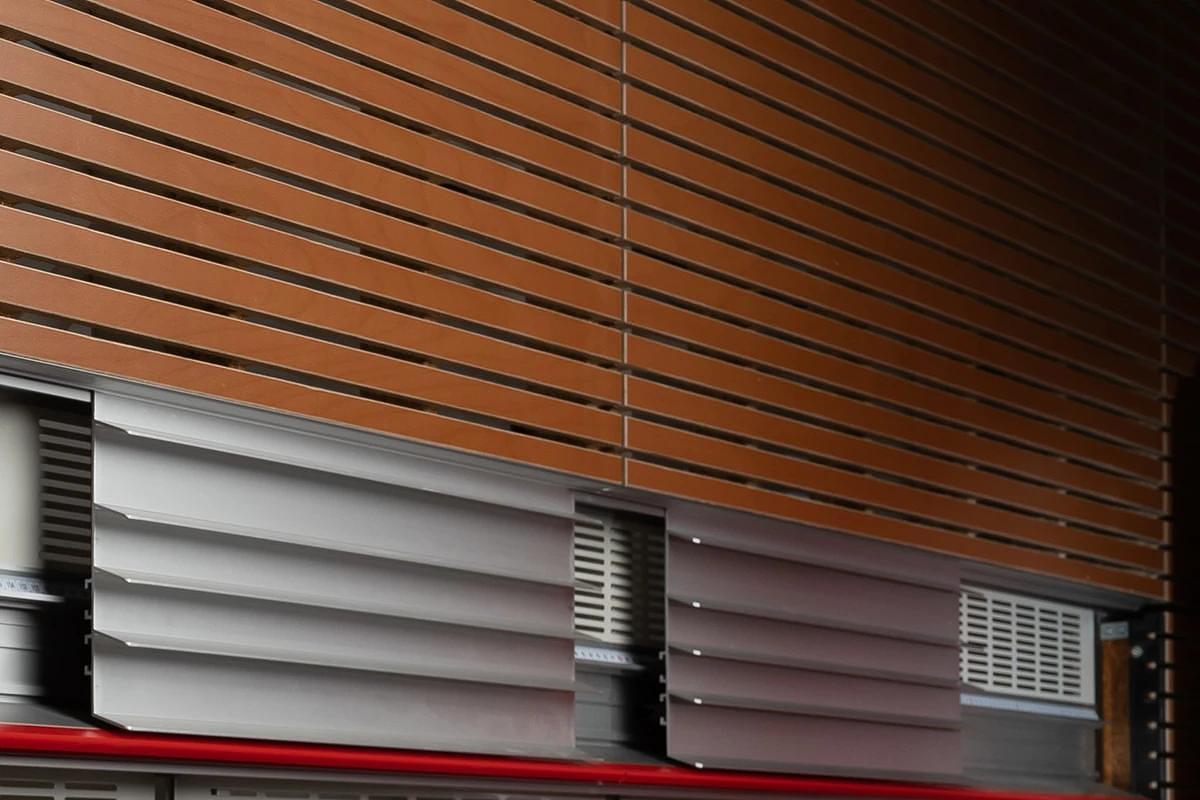

Automatic, mechanically shifting, full wood support grid- great for full support of thin, flimsy materials and an added level of dust control
Laser light to help guide set-up of horizontal cut position
TRK dust system exceeds European standards; note: requires a collection source

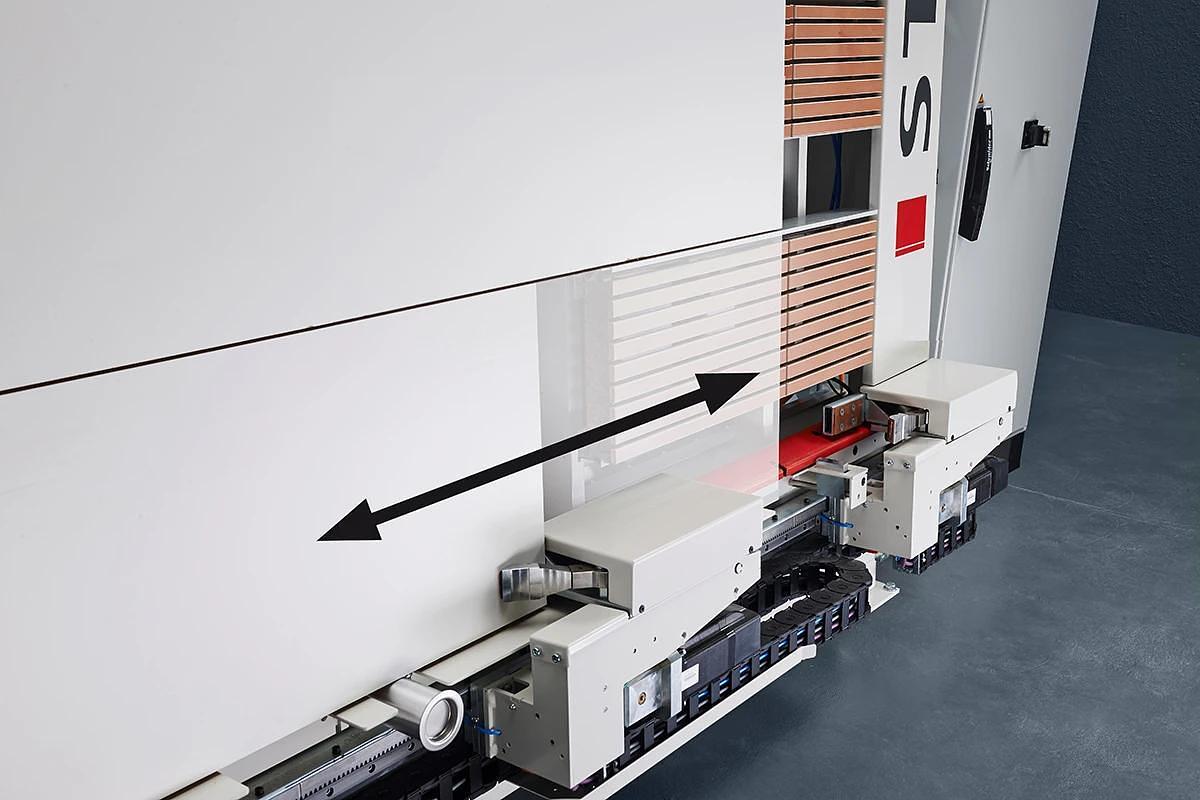

Vertical cut stations 1 meter on center
7.5 hp, 220V, 3-phase motor with electric brake

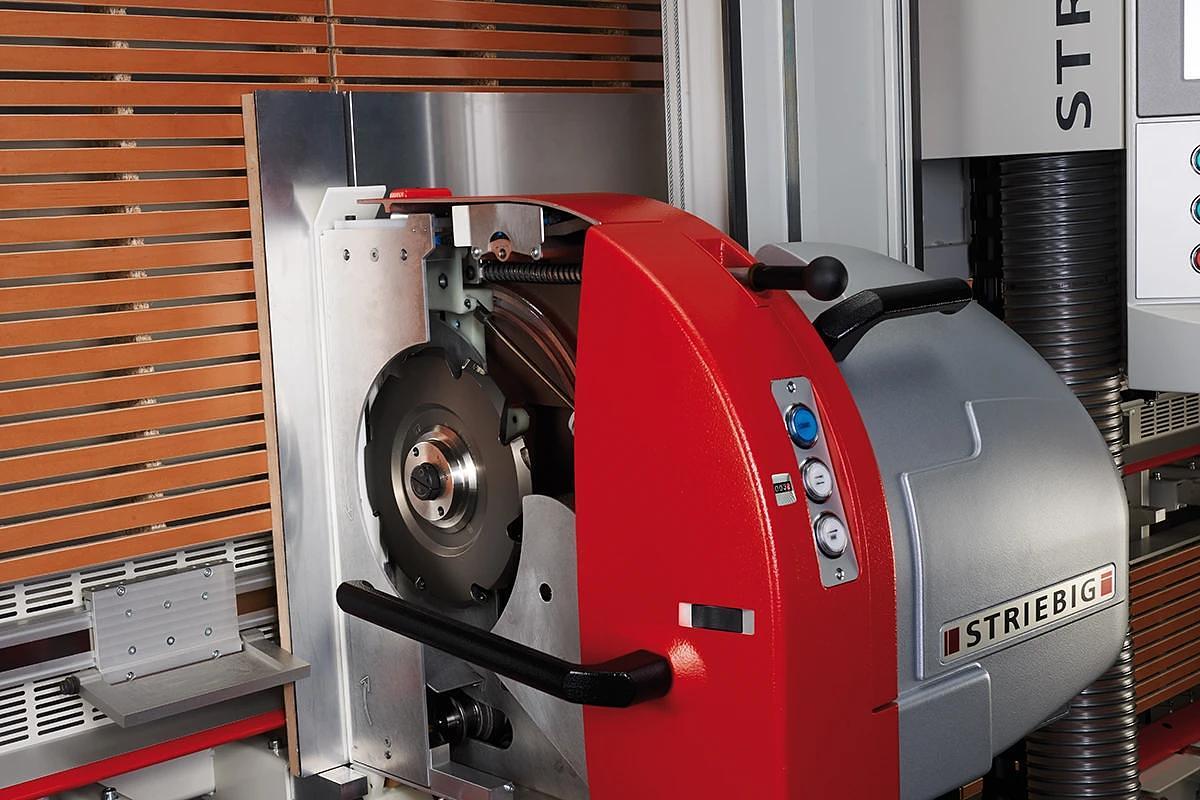

ProLock easy-fix tool clamping system for mounting saw blade
300 mm (11-7/8”) HFG (hollow-face) carbide saw blade
Document holder (removable) to keep cut lists in optimum viewing position near control panel

Specifications

Manufacturer	Striebig
Condition	New
Cut Capacity	17’ 1” L × 7’ 4” H (vertical); 7’ 10 1/2” H (horizontal); depth 3-1/8” (80 mm) standard; larger frame sizes available with cut capacities up to 30’ cut length and 10’ cut height upon request; optional cut depths of 105 mm (4-1/8”) or 130 mm (5-1/8”) available
Machine Dimensions	23’ 10” L × 10’ 4” H × 6’ 3” D (free-standing); plus control box 3’ W × 2’ D × 4’ 8” H at right end of machine
Electrical Requirements	3-phase: 220V, 30A minimum circuit
Dust Collection	Minimum 1,000 CFM; 140 mm diameter connection
Compressed Air	100 PSI, 3 CFM (air dryer strongly recommended)
Approx. Weight	2,640 lbs; approx. 3,900 lbs shipping
