Tried and Tested Over Decades

The STRIEBIG Standard is the saw that built the STRIEBIG legend. Evolving over the years for greater strength and ease of use, its iconic silver sawhead has proven itself for nearly six decades.

With a 7½ hp motor and 300 mm (12″) blade providing a 3⅛″ cut depth, the Standard handles a wide range of materials—from thick plastics and solid wood to composite panels and solid surface. A favorite for its durability and versatility, it remains the benchmark manual panel saw.

Powerful 7-1/2hp motor
Rigid, all-welded steel frame for free-standing or wall-mounted installation
Heavy-duty panel support rollers with integral foot pedal braking system for ease of material handling
Sturdy two-section center shelf with adjustable aluminum fingers for easy small-part handling and material staging
Snap-in, aluminum small parts supports included (one pair)

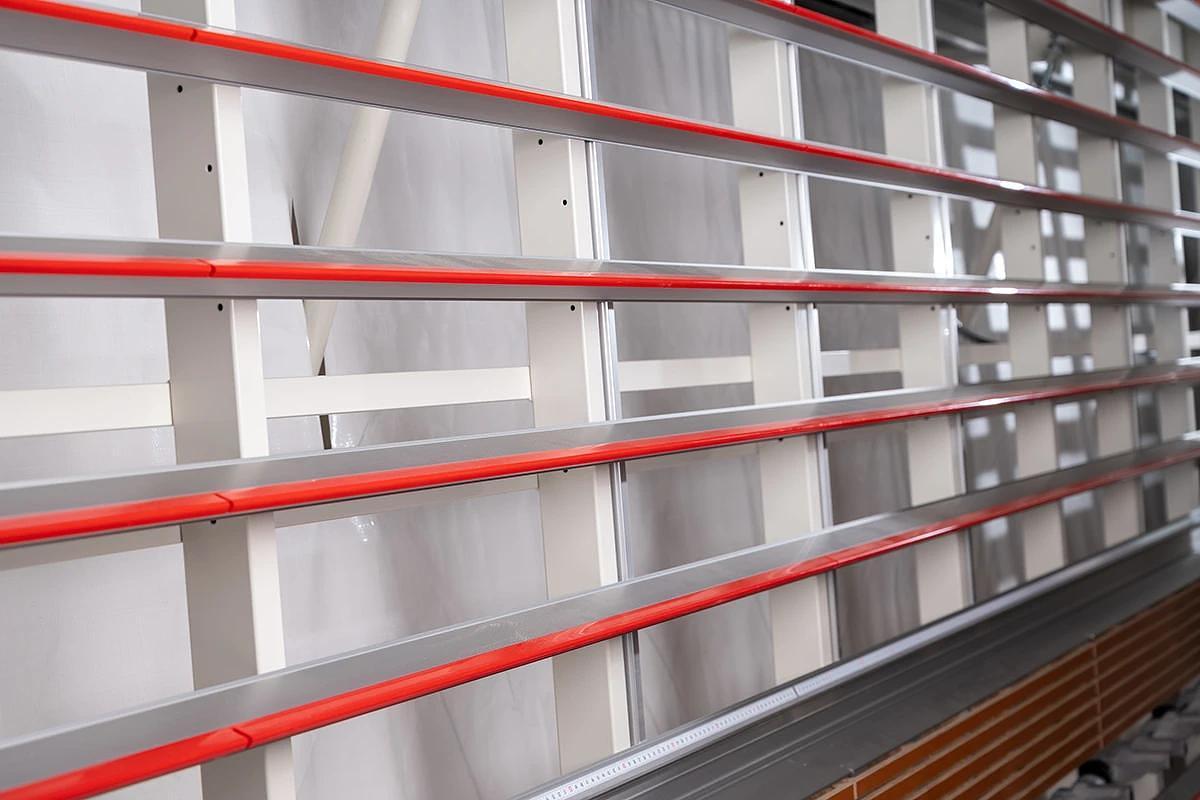

Automatic, mechanically shifting support grid
Vertical cutting stations 40 inches on center (1-meter spacing available for metric shops)
High efficiency dust system has added rear collection area with full-length bottom dust collection pipe

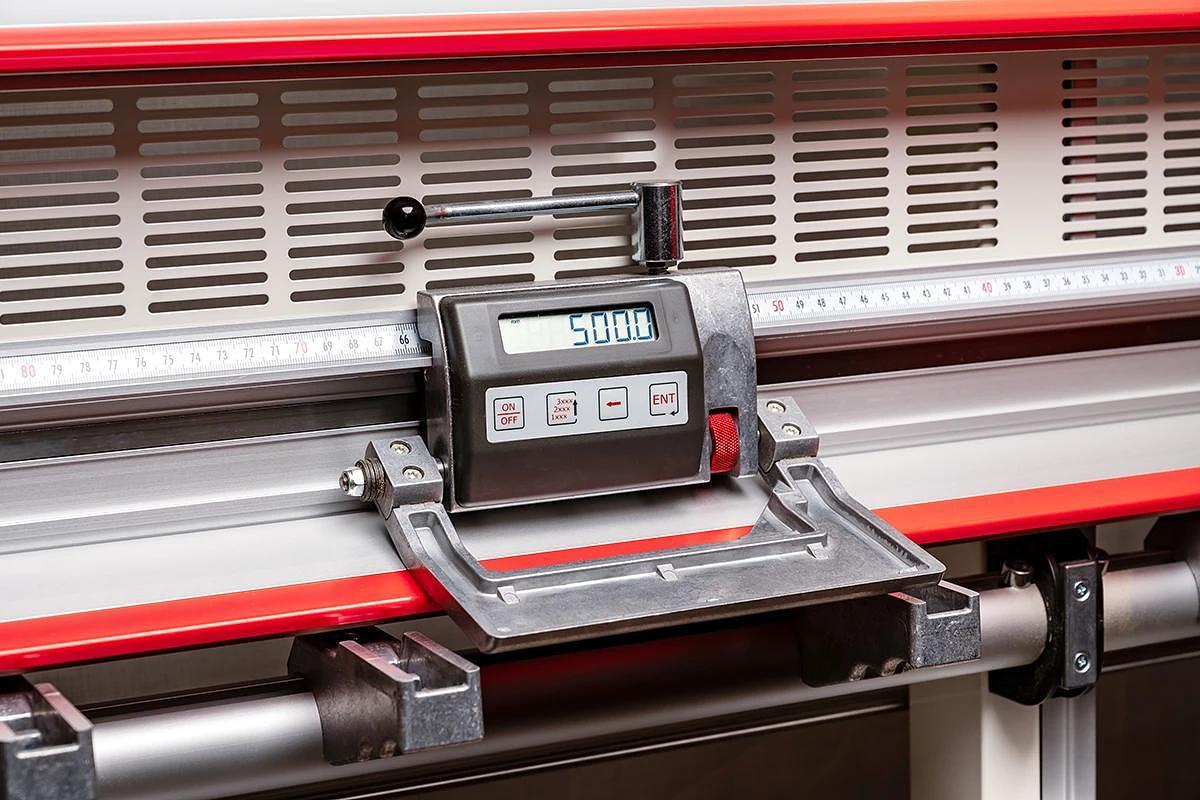

Template bar with six stops for setting typical horizontal cuts
Repeat rip device

Specifications

Manufacturer	Striebig
Condition	New
Cut Capacity	14’ 1” L × 5’ 6” H (5’ 1” trim height); 3-1/8” (80 mm) depth; standard sizes available up to 17’ 4” L × 7’ 4” H; special sizes up to 30’ 6” cut length
Motor	7-1/2 hp, 3-phase motor with soft-start and motor brake
Main Saw Blade	300 mm dia., 30 mm bore with (2) 9 mm pin holes (60 mm circle)
Electrical	3-phase: 220V (30A circuit) or 440V (15A circuit)
Dust Collection	Single 5.5” (140 mm) port (choice of side); 1,000 CFM
Machine Dimensions	18’ 2” L × 4’ 9” D × 7’ 8” H
Approx. Weight	1,650 lbs
