Northtech NT-DTM16M DOVETAILER MANUAL

NT-DTM16M DOVETAILER MANUAL

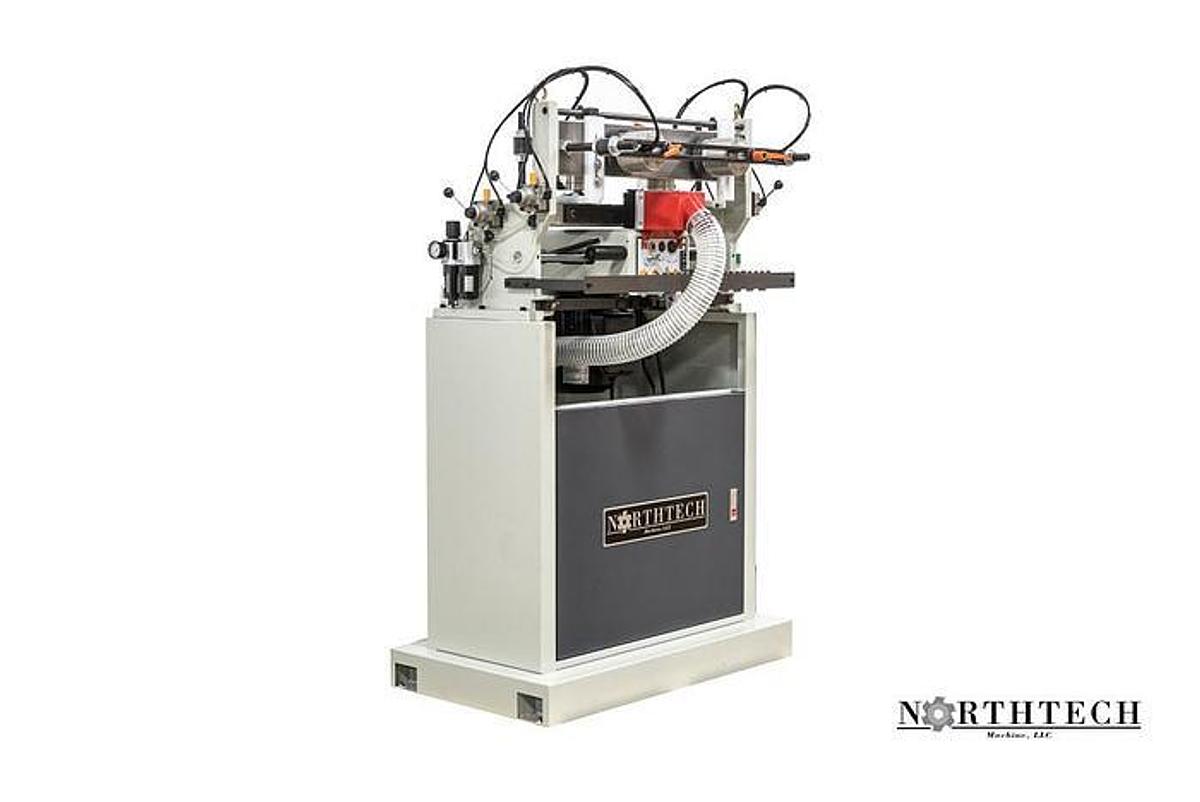

The NT-DTM16M is our entry level dovetail machine. This little unit has a 1HP spindle and 16” working width and is the ideal solution for smaller production needs. Operator manually moves the single spindle across a precision template with (4) different dovetail patterns. The individually operated pneumatic hold downs securely hold part for processing. Available in 120 or 240V 1Ph.

MACHINE HP: 1 HP

VOLTAGE, FREQUENCY: 110 Volt 60 Hz

PHASE: 1 Phase

AMP REQUIREMENT: 9.2 Amps

SPINDLE ARRANGEMENT: Single Spindle

SPINDLE DIAMETER: 12 MM Chuck

SPINDLE RPM: 18500 RPM

APPROVED ELECTRICAL PARTS: CE Approved Components

CONTROL VOLTAGE: 110 Volt

PASS-LINE: 46-1/2"

MAX. WORKING WIDTH: 16.5"

MIN. WORKING THICKNESS: 0.28"

MAX. WORKING THICKNESS: 2.36"

TOOLING: 1 Wing Carbide Bit

DUST COLLECTION REQUIREMENT: 177 CFM @ Extraction Point
