PORTABLE EDGEBANDER

Co-Matic BR500 Portable Edgebander is built with decades of manufacturing experience and excellence. It has all the features that portable edgebanders have, all backed by the Co-Matic brand.

Ergonomic, Intuitive Controls

Rubber Grips and Metal Support Plate

Two rubber grips allow for precise control, while a metal support plate designed to rest on the workpiece allows for strain-free use.

Easy On/Off Switch

The on/off switch is located on top of the primary handle, allowing for immediate control.

Adjustable Glue Pot Handle

The glue pot handle has two positions in case of workpiece interference.

Tape Insert Guide

A measured guide in increments of 1mm determines the width of the edgeband or edging tape and secures it in place for a regulated feeding.

Consistent Glue Application

A knob allows for on-the-fly regulation of glue amount for a mess-free, consistent result.

Digital Temperature Monitor

A digital temperature monitor provides accurate control over glue application.

---

Edgebanding Made Simple

Straight-line and Contour Edgebanding

The BR500 Portable Edgebanders are perfect for all varieties and shapes of workpieces. For contoured or curved surfaces, the minimum inner radius is 25mm (1").

No Edgeband Iron or Hot Air Required

The glue is applied directly onto the edgeband or edging tape. Maintain steady pressure on the workpiece against the feeding roller to apply the edgeband or edging tape at desired temperature.

Glue-Free Edgebands

Save money on your edgebands. By not requiring edgebands or edging tape with pre-applied glue, our portable edgebanders help reduce your costs.

Material Compatibility

The tool works with PVC, melamine, laminate and wood edgebands and edge tape of 0.4mm - 3mm thickness and 10mm - 65mm width.

Angle Adjustment

Our portable edgebanders can operate on tilted surfaces of 75°- 90°, making beveled surfaces as simple as perpendicular ones.

Quick to Start

Co-Matic portable edgebanders need around 20 minutes to warm up from a cold start, and no warm-up time if the gluepot is refilled when at half capacity or more during operation.

Built to Last

Other portable edgebanders may require cool down times – not ours. Our machines are strenuously tested during QA.

Portable and Stationary Use

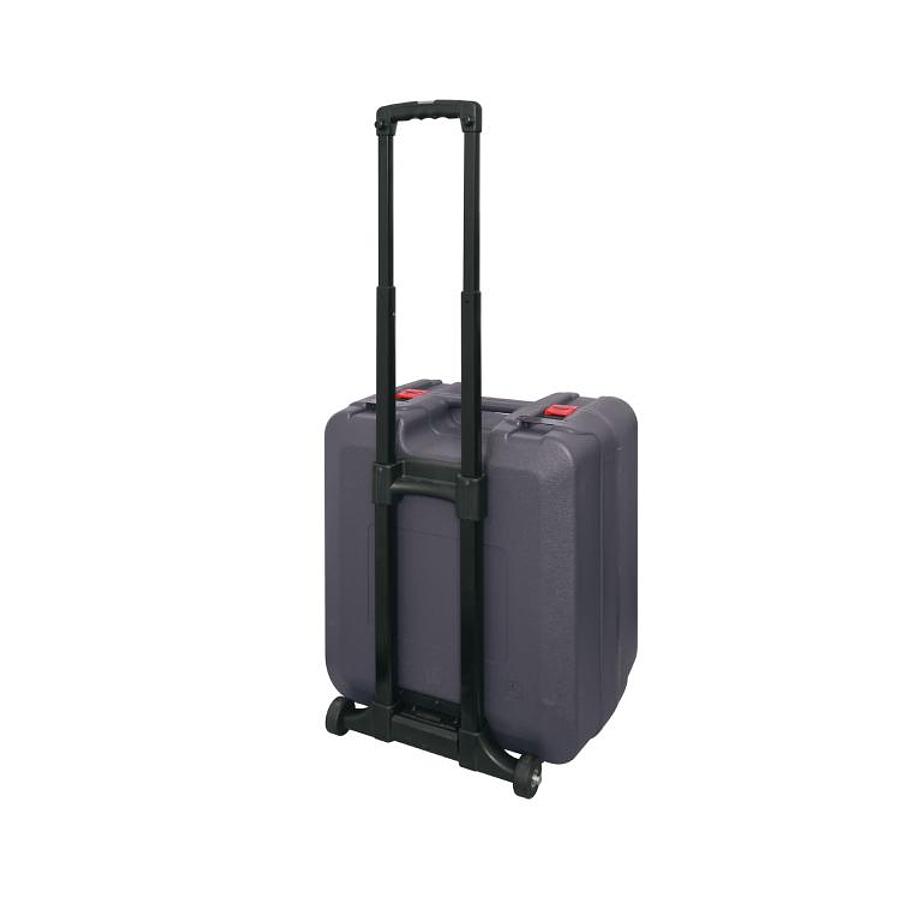

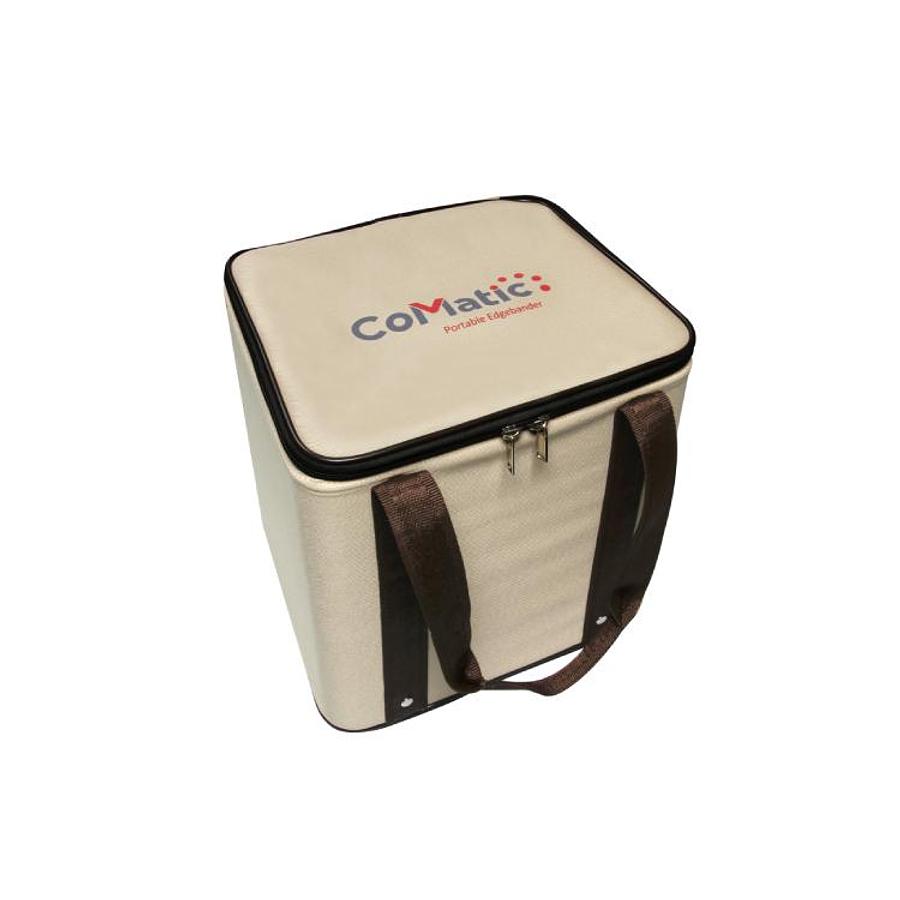

Designed for transportation and space-efficiency, our BR500 Portable Edgebander comes with a durable and lightweight case. For handheld operation, workpieces can be secured with VH03N Vacuum Clamp Set or VP03 Electric Clamping Kit. For stationary operation, they can also be secured to ST95 Stationary Worktable.

The Integration of World Lightest, Most Compact, Highest Performance Portable Edgebander

Custom alignment for use on straight or curved panels

Suitable for portable or stationary application

Special designed glue adjustment knob position to avoid interference during operation

Digital display / variable speed control / temperature control / reheat quickly

Amount of the glue applied could be easily adjusted

Work for panel with beveled edges of 75 to 90 degrees

Guiding plate width could be adjusted from scale of 10 - 65 mm

Tape thickness could be adjusted from 0.4 - 3 mm

Easy use by single operator
