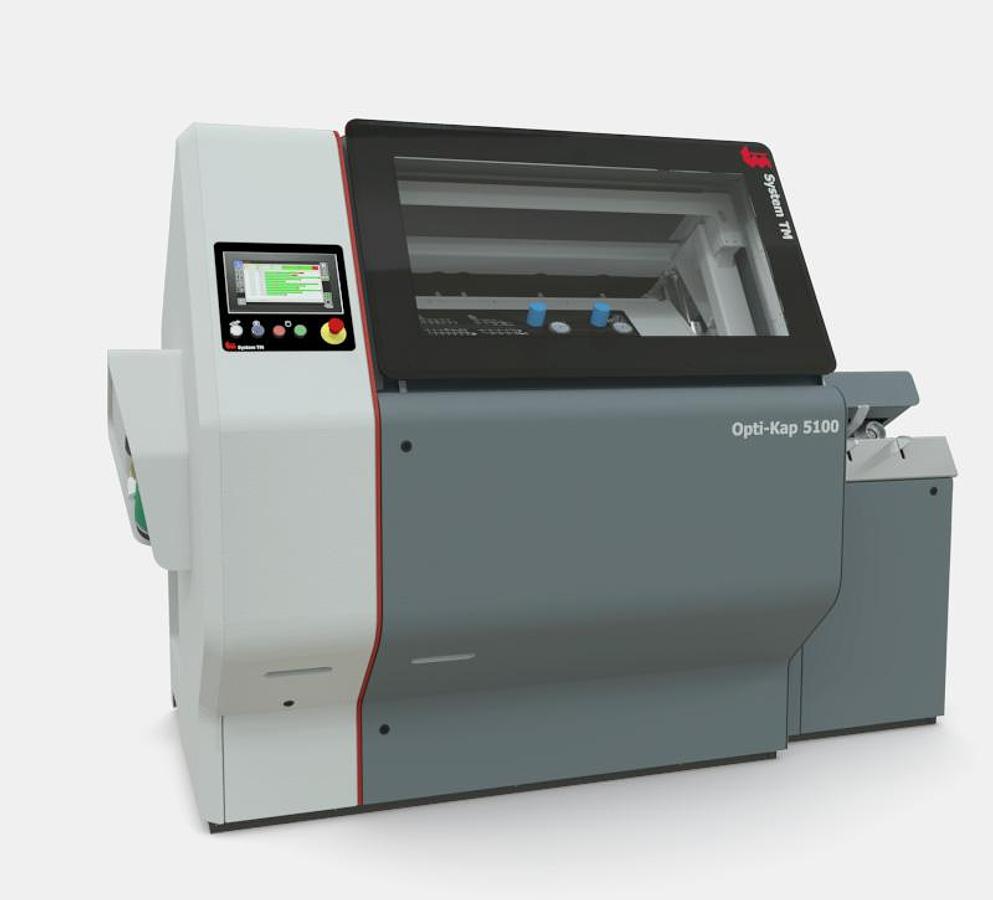

System TM Opti-Kap 5100 Series

Optimizing Through Feed Cross-Cut Saw The impressive power, intelligent performance and high level of safety of the Opti-Kap 5100 series has changed the standard of future optimizing cross-cutting with maximum capacity performance. The forward motion of workpieces inside the saw is achieved as a result of 9 servo driven bottom rollers and 9 double pneumatically-activated pressure rollers. Both the driven and the pressure rollers are double-supported to ensure maximum contact with the workpieces and to guarantee excellent accuracy and an exceptional capacity. The saw blade has a circular movement driven by a servo motor, ensuring a smooth saw blade stroke for optimal kerfs and minimizing the tear-outs during cross-cutting. The Opti-Kap 5100 series automatically recognizes lengths, as well as marked/scanned defects. Ultimately, it cuts the workpieces into components with an accuracy of ± 0.75 mm (0.03”) in cross-cut lengths up to 1,000 mm (39’’). Benefits Integrated infeed rollers and outfeed belt for optimum handling of workpieces Smooth circular saw blade stroke for optimum kerfs to ensure minimum tear-outs during cross-cutting System TM’s software control for optimum uptime and exceptional capacity Intelligent double top pressure rollers for precise and fast positioning of workpieces 9 heavy-duty, double side-supported bottom and top rollers to achieve high capacity with precise cut accuracy Motorized adjustment of various wood dimensions (optional) Fixed mechanical waste gateway for optimum and quick discharge of waste and defect workpieces Integrated waste conveyor belt for optimum sawdust collection and elimination. Central lubrication of all major ball bearings. May be upgraded to operate with automatic infeed (Opti-Feed), stacking (Opti-Stack), finger-jointing (Opti-Joint) and scanning technology High attention to operator safety and machine reliability
