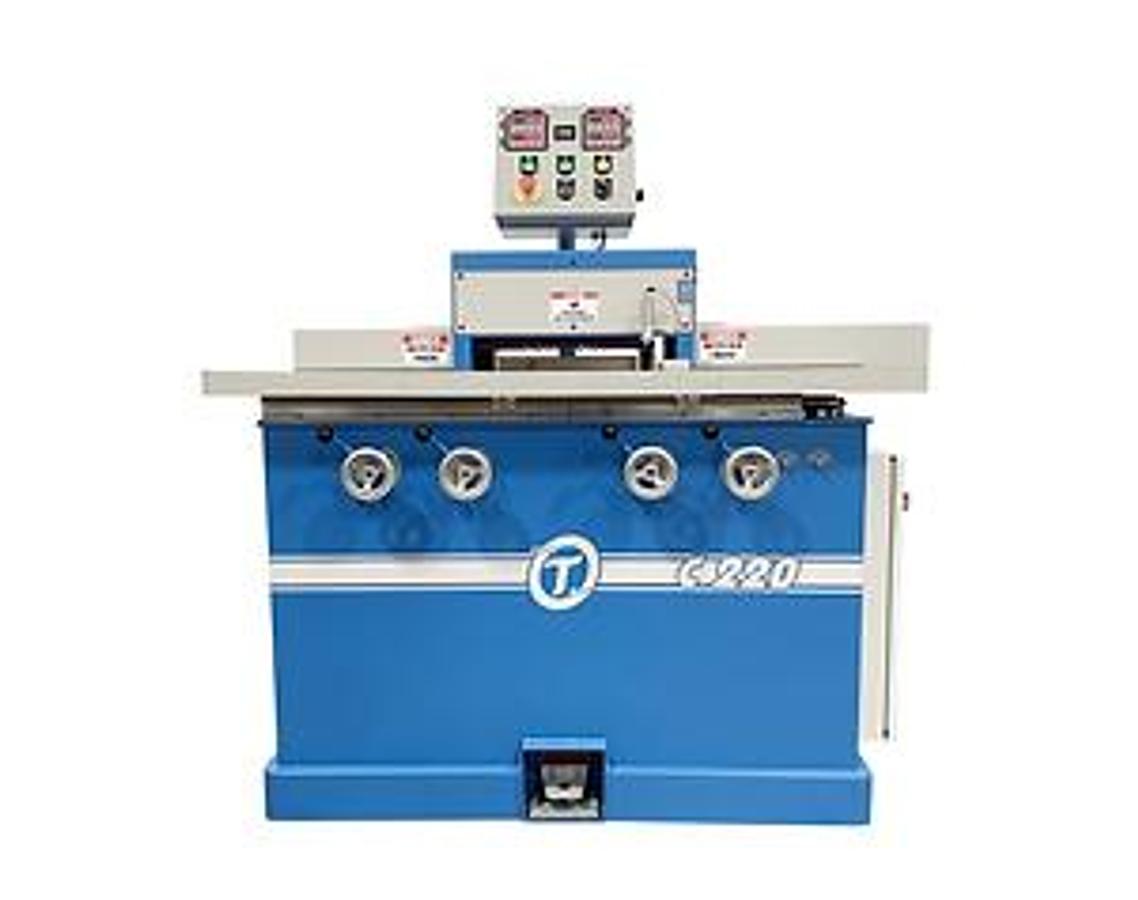

Powerline Machinery C220 Coping Machine

Description

APPLICATION SPECIFICATIONS: EASY Quick-Change Spindles INCLUDED EASY Foot Pedal Cycle Start EASY Pneumatic Hold Down Clamp System 16” Wide Cutting Capacity 5/8” to 1” Material Thickness DRIVE PACKAGE SPECIFICATIONS: 1.25” Spindles 3” and 4” (ID) Cutter Compatible Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts) Flat Belt Drive Y and Z Axis Spindle Adjustments with DRO UTILITY REQUIREMENTS 4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size) 8 Amp FLA @ 230v 3ph (Motor FLA, not disconnect size)

Specifications

Manufacturer	Circle T
Model	C220 Coping Machine
Condition	New
Main Motor	2 – 5 H.P.
Table Size	53” L x 16” W
Table Height	36”
Footprint	53” L x 34” D x 60” H (Additional 17” needed on left side for table movement)
SHIPPING WEIGHT	1900lbs
Dust Collection Requirements	2 – 4″ Outlets, 670 CFM (each)
Pneumatic Requirements	.3 CFM @ 100 PSI to Power Table and Clamp 4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size)
Working Area Footprint	70” L x 34” W x 60” H
Shipping Dimensions	61”L x 42”W x 69”H
