Maggi GT800 – CNC Boring Center
Maggi GT800 – CNC Boring Center
$4,000 (USD)
Location:Tampa, FL
Description
As is, where is. Tampa - St Petersburg FL area
Was operational upon decommissioning

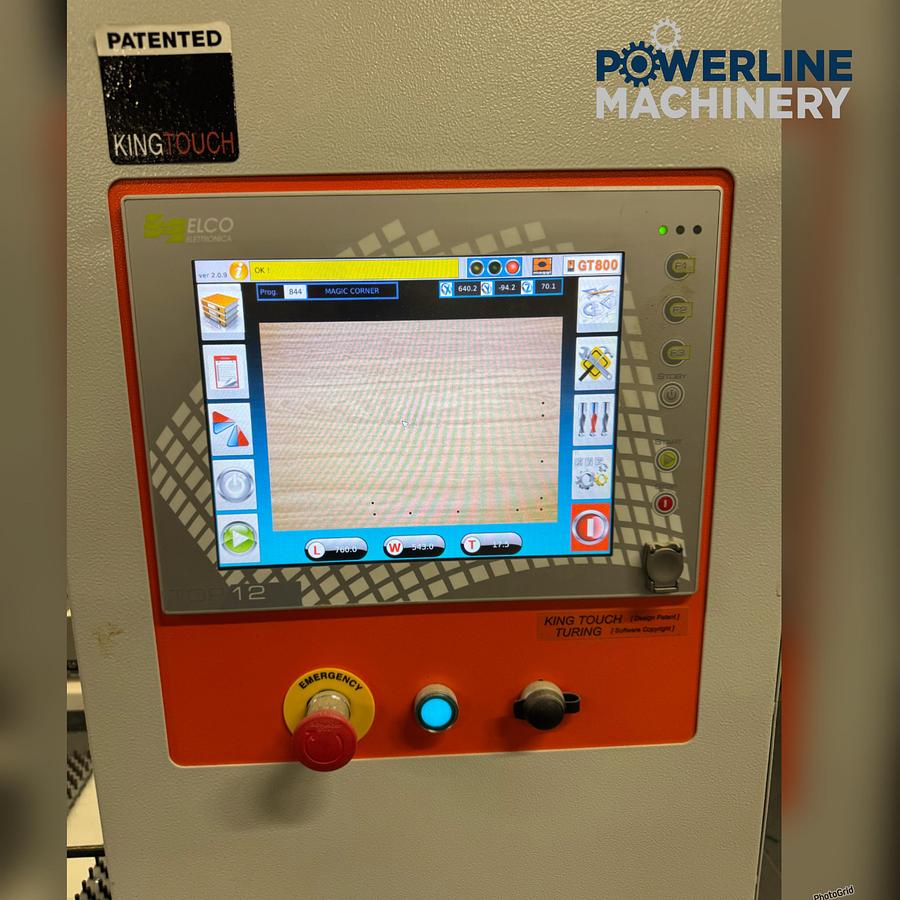

Key Features Very simple, fast programming with an intuitive interface Importable programs and export in text format Store up to 1,000 programs Machines panels from above Drilling on faces and sides of panels, including dowels, hinges, KD fittings, and shelf holes Up to9 vertical spindles(X and Y axes) Saw blade unit in X axis Horizontal spindles in X and Y axes (up to6 horizontal drillstotal) Panel End Edge Reader for accurate assembly Executes all drilling operations in a single cycle 12" touchscreen CNC programming Automatic panel cleaning with brushes Teleservice software Practical Requirements and Benefits Typical total tooling about $300(15 drill bits at ≈ $20 each) Can be placed with a standard forklift with fork extensions (no specialty rigging required) No additional CAD/CAM required; the 12" touchscreen controls all operations and can be learned quickly
Specifications
| Manufacturer | Maggi |
| Model | GT800 |
| Condition | Used |
| Stock Number | - |
| Spindle rotation speed | 3,400 RPM |
| Axis speed | 25 meters/min(≈82 ft/min) |
| Max panel dims | Y 800 mm (31.5"), X unlimited, Z 50 mm (2") |
| Min panel dims | Y 100 mm (3.93"), X 250 mm (9.84"), Z 10 mm |
| Boring capacity | 0–800 mm (31.5")with any spindle |
| Power requirement | 230 V, approx.10 A |
| Air consumption | ≈ 5 cfm |
| Dust extraction | 4" portat≈ 450 cfm |
| Compact footprint | about 6 ft²of floor space |
