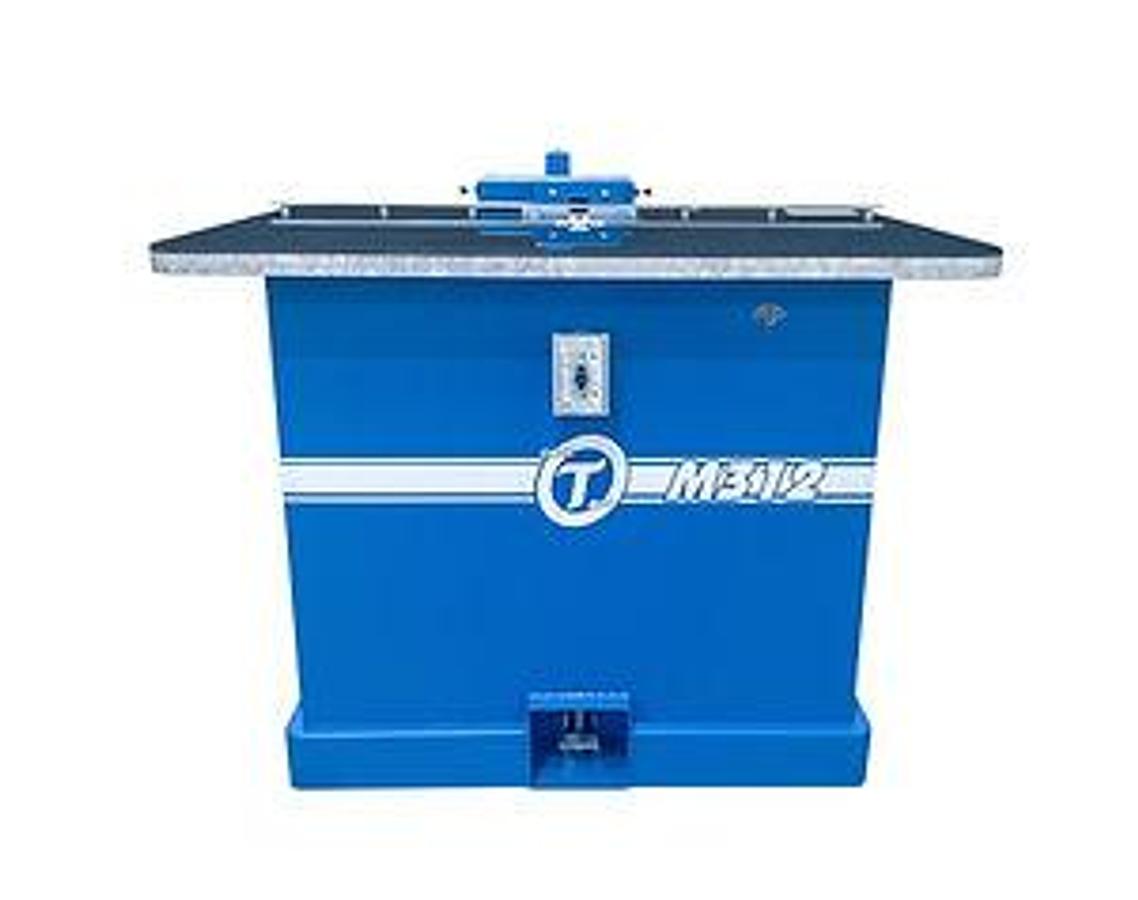

Circle T
Circle T
Location:Tampa, FL
or
Call 813.846.0214
Description
APPLICATION SPECIFICATIONS:
EASY Quick-Change Spindles INCLUDED
EASY Foot Pedal Cycle Start
EASY Pneumatic Hold Down Clamp System
16” Wide Cutting Capacity
5/8” to 1” Material Thickness
DRIVE PACKAGE SPECIFICATIONS:
1.25” Spindles
3” and 4” (ID) Cutter Compatible
Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
Flat Belt Drive
Y and Z Axis Spindle Adjustments with DRO
UTILITY REQUIREMENTS
4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size)
8 Amp FLA @ 230v 3ph (Motor FLA, not disconnect size)
Specifications
| Manufacturer | Circle T |
| Condition | New |
| Main Motor | 2 – 5 H.P. |
| Table Size | 53” L x 16” W |
| Table Height | 36” |
| Footprint | 53” L x 34” D x 60” H (Additional 17” needed on left side for table movement) |
| SHIPPING WEIGHT | 1900lbs |
| Dust Collection Requirements | 2 – 4″ Outlets, 670 CFM (each) |
| Pneumatic Requirements | .3 CFM @ 100 PSI to Power Table and Clamp 4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size) |
| Working Area Footprint | 70” L x 34” W x 60” H |
| Shipping Dimensions | 61”L x 42”W x 69”H |
