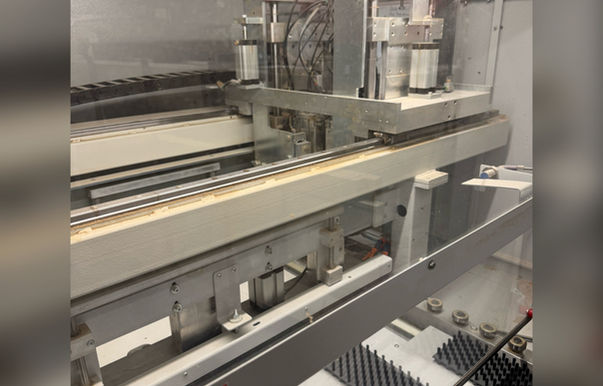

Maggi GT800 – CNC Boring Center
Key Features
Very simple, fast programming with an intuitive interface
Importable programs and export in text format
Store up to 1,000 programs
Machines panels from above
Drilling on faces and sides of panels, including dowels, hinges, KD fittings, and shelf holes
Up to 9 vertical spindles (X and Y axes)
Saw blade unit in X axis
Horizontal spindles in X and Y axes (up to 6 horizontal drills total)
Spindle rotation speed: 3,400 RPM
Axis speed: 25 meters/min (≈ 82 ft/min)
Panel End Edge Reader for accurate assembly
Max panel dims: Y 800 mm (31.5"), X unlimited, Z 50 mm (2")
Min panel dims: Y 100 mm (3.93"), X 250 mm (9.84"), Z 10 mm
Boring capacity: 0–800 mm (31.5") with any spindle
Executes all drilling operations in a single cycle
12" touchscreen CNC programming
Automatic panel cleaning with brushes
Teleservice software
Practical Requirements and Benefits
Typical total tooling about $300 (15 drill bits at ≈ $20 each)
Power requirement: 230 V, approx. 10 A
Air consumption: ≈ 5 cfm
Dust extraction: 4" port at ≈ 450 cfm
Compact footprint: about 6 ft² of floor space
Can be placed with a standard forklift with fork extensions (no specialty rigging required)
No additional CAD/CAM required; the 12" touchscreen controls all operations and can be learned quickly
